System Architecture
Static partition keeps validated switching, routing, firewall and packet engines fixed; dynamic partition enables user-defined encryption and custom acceleration blocks.
Xilinx Zynq UltraScale+ MPSoC XCZU15EG

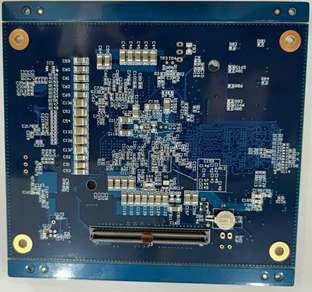

SOM-NetFPGA-15EG-4G for High-Density Network and AI Edge Systems
SOM-NetFPGA-15EG-4G combines XCZU15EG compute capability, multi-core ARM control and dense FPGA fabric in one platform. The board targets high-performance embedded deployment where network processing, security, acceleration and production stability are all required.
Software Environment
Embedded Linux BSP with U-Boot support from QSPI and eMMC, bundled with reference device tree, driver templates, root filesystem and Vivado projects.
Production Capability
Designed for mass production with visual, electrical, functional and software verification steps, ensuring product consistency and full traceability.
| SoC | AMD Zynq UltraScale+ MPSoC XCZU15EG-2FFVB1156 with quad ARM Cortex-A53, dual Cortex-R5 and Mali-400 GPU. |
|---|---|
| Memory | 4 GB DDR4 with single or dual rank options based on project requirements. |
| Boot & Storage | QSPI Flash for bootloader/bitstreams and 16 GB eMMC for Linux image and application data. |
| Connectivity | UART, I2C, SPI, GPIO, 1GbE/10GbE Ethernet or SFP options, with PCIe and high-speed connector lane expansion. |
| Target Applications | Firewall, SD-WAN, industrial control, AI edge acceleration, image processing and telecom systems. |
Static + Dynamic FPGA Partition
1G / 10G Networking
OEM Configurable
CE/FCC Support Path
Customization
Supports DDR4, eMMC and Flash configuration choices, with optional PHY, SFP and PCIe integration for specific deployments.
Quality & Reliability
Industrial-oriented mechanical and thermal options are available, with process controls for continuous operation scenarios.
Lifecycle Strategy
Built for long-lifecycle enterprise projects requiring stable maintenance planning and sustained supply.
Order Baseline
Standard baseline includes XCZU15EG + 4 GB DDR4 + 16 GB eMMC + QSPI Flash with evaluation board options.
Need sample, pricing or OEM support?
Contact us for lead time, customization scope, hardware package and software handover details.
